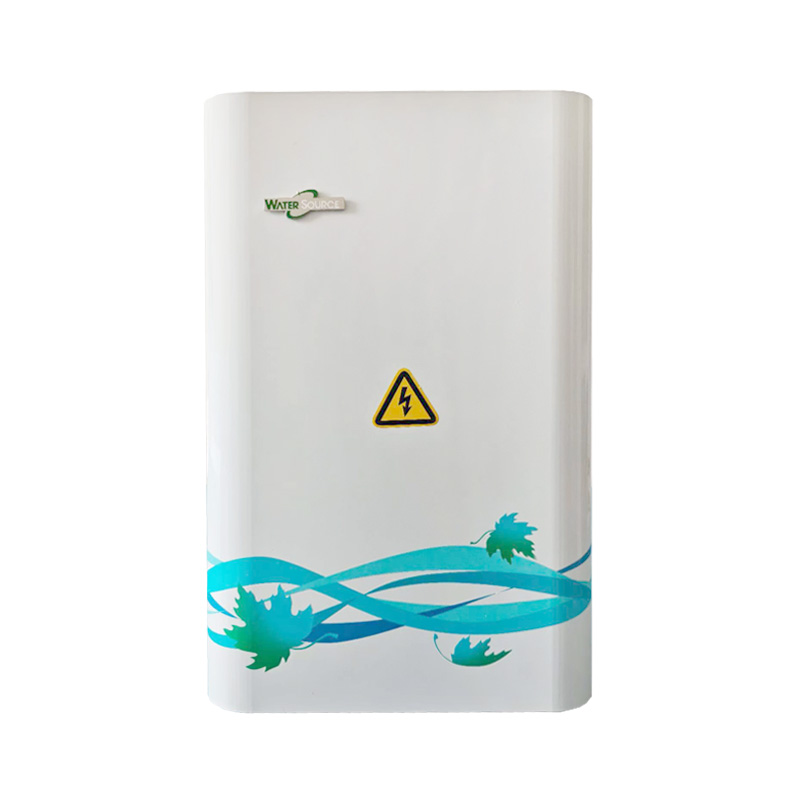

WaterSource OED Series
Air-Source Ozone Generators for Water Treatment
The WaterSource OED Series uses ceramic ozone-generating tubes to support disinfection, improve water clarity, and help control algae. The series is designed for efficient operation and straightforward installation and maintenance.
The series includes three models: OED-50, OED-100, and OED-150, with ozone outputs of 50 g/h, 100 g/h, and 150 g/h respectively. Applications include swimming pools, water tanks, and water features.
Key Features
Voltage Protection
Voltage protection supports operation within the selected model’s specified electrical requirements.
Ceramic Ozone-Generating Tubes
Ceramic tubes provide corrosion resistance, electrical insulation, and stability for reliable ozone generation.
Simplified Maintenance
Designed to simplify routine maintenance and help reduce maintenance labour and servicing costs.
Energy-Efficient Operation
Designed for efficient ozone generation with low energy consumption to help reduce operating costs.
Dedicated Injector and PTFE Tubing
A dedicated injector and PTFE tubing simplify installation and connection to the water treatment system.
Simplified Pump Requirements
The system requires a booster pump without a separate cooling pump, simplifying installation and operation.
Performance Benefits
• Supports water disinfection through ozone oxidation.
• Helps improve water clarity and control algae.
• Can help reduce chemical and chlorine demand.
• Designed for efficient operation with low energy consumption.
• Simplifies installation and maintenance.
• Helps reduce maintenance labour and operating costs.
Applications
• Swimming pools
• Water tanks
• Water features
• Pool and tank water treatment systems
Technical Specifications
OED-50
Ozone Output: 50 g/h
Air Flow Rate: 2.7 m³/h
Power Consumption: 1.47 kW
Power Supply: 230/110/380 V
Dimensions: 1060 × 1880 × 530 mm
OED-100
Ozone Output: 100 g/h
Air Flow Rate: 5.4 m³/h
Power Consumption: 2.85 kW
Power Supply: 230/110/380 V
Dimensions: 1060 × 1880 × 530 mm
OED-150
Ozone Output: 150 g/h
Air Flow Rate: 8.1 m³/h
Power Consumption: 4.2 kW
Power Supply: 230/110/380 V
Dimensions: 1060 × 1880 × 530 mm
Installation & Maintenance
The OED Series uses a dedicated injector and PTFE tubing for connection to the water treatment system. A booster pump is required; a separate cooling pump is not required.
Confirm the selected model’s electrical supply and installation requirements with WaterSource before installation. Regular maintenance of the ozone-generating components helps maintain stable output. Use ozone-compatible piping and materials, and follow the manufacturer’s installation, operation, and maintenance instructions.
Find the Right OED Model
Contact WaterSource for assistance selecting an OED Series ozone generator for your water treatment application.
