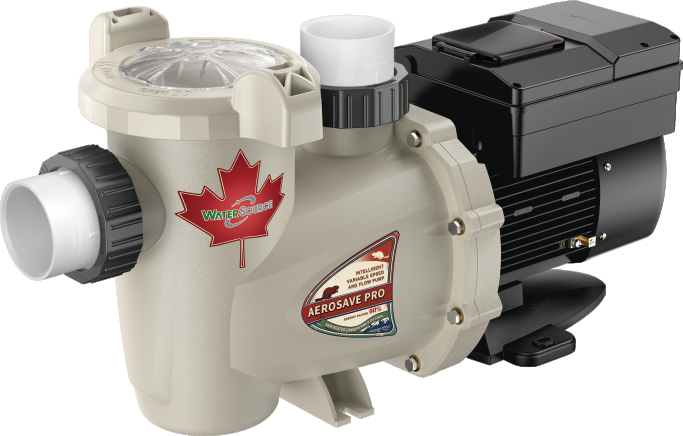

WaterSource AeroSave Pro Series

Variable-Speed Pool Pumps with App and Touchscreen Control

The AeroSave Pro Series combines a permanent-magnet motor with adjustable-speed operation and Smart Pump app and touchscreen control. Designed for residential and commercial pool circulation and filtration, it allows operating speed to be adjusted to suit the system’s requirements.

Planning a new installation or replacing an existing pump? Contact our British Columbia-based team to compare AeroSave Pro models against your required flow rate, total dynamic head, and electrical supply.

Discuss Your Pump Requirements

Key Features & Advantages

Variable-Speed Control

Adjust operating speed within the 600–3450 RPM range to suit pool circulation and filtration requirements.

Permanent-Magnet Motor

Permanent-magnet motor technology supports efficient operation across adjustable pump speeds.

Smart Pump App

Use the Smart Pump app to access pump settings and adjust operation from a compatible mobile device.

Touchscreen Control

An integrated touchscreen provides access to pump settings and operating controls.

IP55 Motor Protection

The motor has an IP55 protection rating and Class F insulation. Confirm installation requirements for your selected model.

Optional Automation

Optional automation integration is available. Contact WaterSource to confirm compatible controls and model configurations.

System Selection

  • Match the pump to the required flow rate and total dynamic head.
  • Confirm electrical supply and the selected model’s voltage requirements.
  • Check pipe connections, installation space and service access.
  • Discuss operating schedules and control requirements.
  • For replacement projects, provide the existing pump model and installation details.

Applications

  •  Residential swimming pools
  • Commercial swimming pools
  • Pool circulation systems
  • Pool filtration systems

Contact WaterSource to discuss suitability for your application and operating conditions.

Model Range

Compare AeroSave Pro models by rated output and electrical supply. Open a model below for its specifications.

Pump selection should also consider the required flow rate and total dynamic head.

AeroSave Pro-750 D — 0.75 HP

  • Rated Output: 0.75 HP
  • Maximum Output: 1 HP
  • Voltage: 115/208–230 V
  • Frequency: 50/60 Hz
  • Speed Range: 600–3450 RPM
  • Phase: Single-phase
  • Insulation Class: F
  • Protection Rating: IP55
  • Duty: Continuous
  • Motor Type: Permanent Magnet Motor
  • Motor Configuration: 71

AeroSave Pro-1000 PD — 1 HP

  • Rated Output: 1 HP

  • Maximum Output: 1.25 HP

  • Voltage: 115/208–230 V

  • Frequency: 50/60 Hz

  • Speed Range: 600–3450 RPM

  • Phase: Single-phase

  • Insulation Class: F

  • Protection Rating: IP55

  • Duty: Continuous

  • Motor Type: Permanent Magnet Motor

  • Motor Configuration: 90 PFC+EMC

AeroSave Pro-1500 PD — 1.5 HP

  • Rated Output: 1.5 HP

  • Maximum Output: 1.65 HP

  • Voltage: 115/208–230 V

  • Frequency: 50/60 Hz

  • Speed Range: 600–3450 RPM

  • Phase: Single-phase

  • Insulation Class: F

  • Protection Rating: IP55

  • Duty: Continuous

  • Motor Type: Permanent Magnet Motor

  • Motor Configuration: 90 PFC+EMC

AeroSave Pro-2000 PD — 2 HP

  • Rated Output: 2 HP

  • Maximum Output: 2.25 HP

  • Voltage: 115/208–230 V

  • Frequency: 50/60 Hz

  • Speed Range: 600–3450 RPM

  • Phase: Single-phase

  • Insulation Class: F

  • Protection Rating: IP55

  • Duty: Continuous

  • Motor Type: Permanent Magnet Motor

  • Motor Configuration: 90 PFC+EMC

AeroSave Pro-2300 PD — 2.3 HP

  • Rated Output: 2.3 HP

  • Maximum Output: 2.45 HP

  • Voltage: 115/208–230 V

  • Frequency: 50/60 Hz

  • Speed Range: 600–3450 RPM

  • Phase: Single-phase

  • Insulation Class: F

  • Protection Rating: IP55

  • Duty: Continuous

  • Motor Type: Permanent Magnet Motor

  • Motor Configuration: 90 PFC+EMC

AeroSave Pro-2700 PD — 2.7 HP

  • Rated Output: 2.7 HP

  • Maximum Output: 2.7 HP

  • Voltage: 115/208–230 V

  • Frequency: 50/60 Hz

  • Speed Range: 600–3450 RPM

  • Phase: Single-phase

  • Insulation Class: F

  • Protection Rating: IP55

  • Duty: Continuous

  • Motor Type: Permanent Magnet Motor

  • Motor Configuration: 90 PFC+EMC

AeroSave Pro-3000 PH — 3 HP

  • Rated Output: 3 HP

  • Maximum Output: 3 HP

  • Voltage: 220–240 V

  • Frequency: 50/60 Hz

  • Speed Range: 600–3450 RPM

  • Phase: Single-phase

  • Insulation Class: F

  • Protection Rating: IP55

  • Duty: Continuous

  • Motor Type: Permanent Magnet Motor

  • Motor Configuration: 90 PFC+EMC

AeroSave Pro-4000 PH — 4 HP

  • Rated Output: 4 HP

  • Maximum Output: 4 HP

  • Voltage: 220–240 V

  • Frequency: 50/60 Hz

  • Speed Range: 600–3450 RPM

  • Phase: Single-phase

  • Insulation Class: F

  • Protection Rating: IP55

  • Duty: Continuous

  • Motor Type: Permanent Magnet Motor

  • Motor Configuration: 90 PFC+EMC

Need more information about a specific model? Contact WaterSource to request detailed specifications, performance curves and installation information. Include your preferred model and any known flow, head and electrical requirements.

Request Technical Information
